GJS09-JTH-TX23-16
16 Cores Mechanical Sealing Fiber Optic Enclosure Caja Fibra Optica

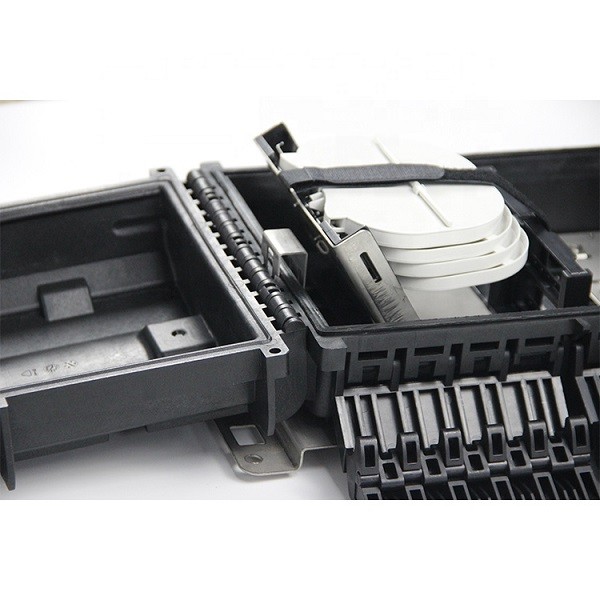

FTTH Drop Cable Type Fiber Optic Splice Closure GJS09-JTH-TX23-16 is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.FTTH Drop Cable Type Fiber Optic Splice Closure features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration, and extreme temperatures. Humanized design helps the user get a better experience and safer operating environments.
Specification:
Name |
16 Cores Waterproof Fiber Optic Splice Box |
Model |
GJS09-JTH-TX23-24-H |
Dimension |
38.5X24.5X13.0CM |
Capacity |
16 Fibers |
Cable ports |
16 round ports |
Applicable Cable Diameter |
8-17 mm |
Material |
Modified Polymer Plastic |
Sealing Structure |
Mechanical Sealing |
Weight |
4.8KGS |
Installation |
Wall mounting/ Pole mounting |
Protection grade |
IP 68 |
Contact Us |
Sufee-cl@cl-telecom.com |
Impact Test: IK10
Pull Force:100N
Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa
Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC); IR≥2MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
