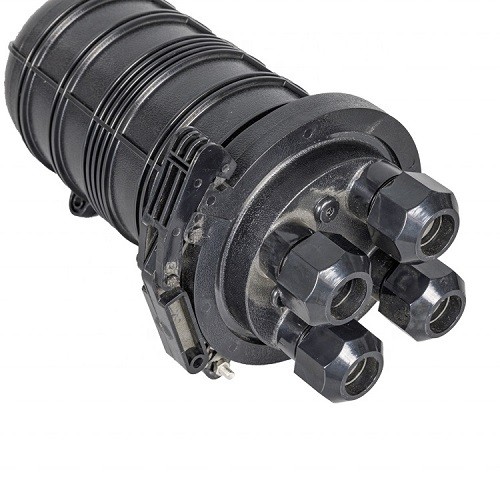

48 FO Mechanical Sealing Dome Closure
The Model GJS09-JTK-12/48D FOSC is mainly used for optical fiber connection and protection.
This kind of FOSC is suitable for the connection of overhead, pipe and buried straight and branch.The enclosure body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.
The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.The product can be opened again and reused after installation.
Part No. |
GJS09-JTK-12/48D |
Dimension |
305 * Ø120mm |
Protection Class |
IP68 |
Main Cable Ports |
1 oval port |
Drop Cable Ports |
3 circular ports |
Fusion Splice |
48 FO |
Number of Splices Tray |
4 PCS |
Mount Way |
Aerial / Wall-mount / Pole-mount |
