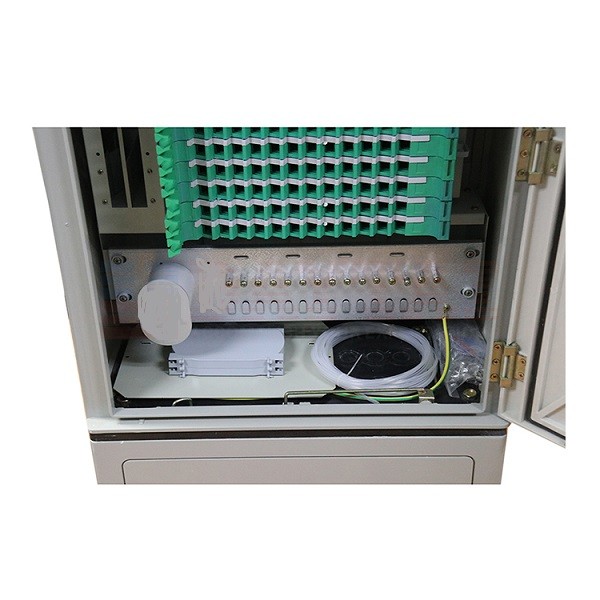

Fiber Optic Cross Connect Cabinet with ABS PLC Splitter

Fiber Optic Cross Connect Cabinet with ABS PLC Splitter

Product Item : GPX-TX 96S-ABS
Category： Cable Cabinet
72 96 144 288 Core Outdoor Fiber Optic Cross Connect Cabinet
with ABS PLC Splitter
Street mount type water proof
PI 68 grade
INQUIRY EMAIL

Product Description

						Fiber Optic Cross Connect Cabinet, Installation Ways:Floor Installation,Wall-Mounted,Pole Installation is optional,

Size:1035mmx550mmx310mm (72-144 Core), 1450mmx760mmx340mm (288 Core), Cabinet Material:SMC or Stainless Steel is Optional. Maximum installation:Total 72Core (6PCSx12Core Fusion Splicer Trays integrated Module), Total 96Core (8PCSx12Core Fusion Splicer trays),Total 144Core (12PCSx12Core Fusion Splicer trays),Total 288Core (24PCSx12Core Fusion Splicer trays) SC/LC/FC/ST...Adapter and Pigtail is Optional,APC or UPC is Optional.

Feature

					⊙The cabinet is equipped with horizontal wiring duct, and makes the optical cable layout more reasonable and tidy.

⊙Adopts the terminal tray integrating welding and distributing. Welding and distributing are performed at the same level, which makes the operation convenient, reduces the length of ribbon tail fiber and lowers the cost.

⊙The cabinet adopts special high-strength corrosion-resistant materials, has good waterproof, anti-condensing, moisture resistance properties, and can stand various adverse effects caused by climate and environment.

⊙The optical fiber splitter is structurally reasonable, the optical fiber cable core is sheathed with sleeve, and the fixing,

grounding and other operation on optical fiber cable can be performed, without removing the optical fiber splitter.

⊙ Large capacity: the maximum distribution capacity is 96-cores, 144-cores, 288-cores, and 576-cores four types of optical fiber cables, and the capacity of direct welding is single, 120-cores -240-cores, and 240-cores -480-cores ribbon optical fiber cables.

⊙The terminal module adopts the horizontal draw-out structure with 12 cores as a unit, each core can be drawn out separately, which makes it convenient to operate in distributing, and reduces the number of bends arising from the distributing of tail fiber.
